Model  XSP-41

Total Magnification:1000X
Achromatic Objectives:4X, 10X, 40X(R), 100X(R) oil
Eyepieces:WF10X
Lens Tube:Monocular 45ˇăInclined Tube
Reflector:Concave-Plan Reflector, With ¦µ=50mm
Condenser:Abbe Type NA=1.25 With Iris Diaphragm
Coaxial Focusing System:Focus Range: 30mm
The Minimum Value of Fine Focus Knob: 0.004mm
With Adjustment of Elasticity and Installation
 With Focusing System
Working Stage:Area: 122x132mm
Moving Range of 70X50mm in X-Y Direction
Options Widefield Eyepiece: WF15X, WF16X

ˇˇ

Model ME-123

Total Magnification:40X~1000X
Achromatic Objectives:4X, 10X, 40X(R), 100X(R) oil
Eyepieces:WF 10X
Double Stage:Abbe Type NA=1.25 With Iris Diaphragm
Area 115X125mm, Moving Range of 70X30mm in X-Y Directions
Illuminator:Fluorescence 110V/7W, 220V/7W(ME123FF)
Halogen 110V.220V/6V12W(ME123HF)
Lens Tube:Double-Inclined Tube
Binocular 30ˇăInclined Tube, With 55-75mm Distance
Coaxial Focusing System:Focus Range: 10mm
Options:Achromatic Objectives:63X (R), Eyepieces: WF15X
Contrast Kit, Polarization Set, Attachable Mechanical Stage

ˇˇ

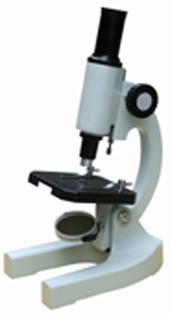

Model XSP-200


Total Magnification:200X
Huygenian Eyepieces:H10X
Achromatic Objectives:20X
Lens Tube:Monocular Vertical Tube
Reflector:Concave Reflector, With ¦µ=44mmMechanical
Tube Length:135mm
Focus Range:26mm
Working Stage:Area: 84X88mm

Model EPS-402


Total Magnification:400X
Widefield Eyepieces:WF10X With Pointer
Objectives:4X, 10X, 40X(R)
Illumination Systems:Illuminator (110V/15W, 220V/15W Optional)
Mechanical Tube Length:130mm
Focus Range:10mm
Lens Tube:Monocular Vertical Tube
Base:Rotatable Upright, Oblique Observation Available
Working Stage:90x90mm

ˇˇ






ˇˇ

Model  XT-III

Base:Halogen Base 6V/15W
Illumination Systems:Light can be selected up and down, Brightness Adjustable
Lens Tube:Binocular 45ˇăInclined Tube With 55-75mm Distance Between Pupils
Working Distance:105mm
Up-Down Adjusting Range of The Supporting Body:74mm~125mm
Options:WF15X, WF20X, 0.5X, 1.5X, 2X

ˇˇ

Model XT-IIIA

Objectives:1X, 2X, 3X, 4X
Widefield Eyepieces:WF10X
Stand:Halogen Stand 6V/15W
Base:Halogen Base 6V/15W
Illumination Systems:Light can be selected up and down, Brightness Adjustable
Lens Tube:Binocular 45ˇăInclined Tube With 55-75mm Distance Between Pupils
Working Distance:105mm
Up-Down Adjusting Range of The Supporting Body:74mm~125mm
Options:WF15X, WF20X, 0.5X, 1.5X, 2X

ˇˇ

ˇˇ

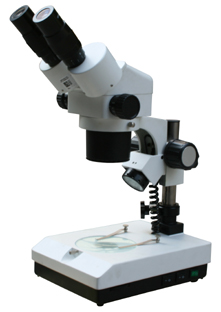

Model XTL-II


Objectives:0.75X--3.5X
Widefield Eyepieces:WF10X Field Number ¦µ21mm
Stand:Halogen Stand 6V/15W (XTL-IIF)
Pillar Stand (XTL-IIL)
Base:110V/5W, 220V/5W (XTL-IIF)
Pillar Base (XTL-IIL)
Illumination Systems:Light can be selected up and down, Brightness Adjustable (XTL-IIF)
Lens Tube:Binocular 45ˇăInclined Tube With 55-75mm Distance Between Pupils
Real Field:¦µ6mm-¦µ28mm
Working Distance:75mm
Up-Down Adjusting Range of The Supporting Body:74mm~125mm
Options:WF15X, WF20X, 0.5X, 1.5X, 2X

ˇˇ

  Model XT-II
Total Magnification:40X
Eyepieces:10X
Objectives:4X
Lens Tube:Binocular Vertical Tube
Working Distance:53.5mm
Focus Range:40mm

Model XSJ-II
Total Magnification:40X (Upright)
Eyepieces:H10X
Objectives:4X
Working Distance:
More Than 55mm
Reflector: Concave Reflector, ¦µ=40mm
Working Stage:  70X60mm
